Female compression fittings offer a clean and efficient approach for connecting pipes and tubing. They eliminate the need for solder or welded joints. This article explores the purpose of female compression fittings, highlighting how the compression nut and ferrule produce a tight seal. It also highlights their importance in both plumbing and HVAC applications.
3/8 Compression Coupling
Opting for high-quality pipe fittings can greatly limit energy losses. This, in turn, prevents refrigerant or water leaks, which can harm the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, need robust connections. Selecting the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is critical for long-term system performance.
For plumbing work, PEX or PVC with compression fittings are frequently used for their ease of service and low heat exposure. In comparison, refrigeration lines require fittings that can withstand thermal fatigue and maintain a seal across a wide temperature range. InstallationPartsSupply.com and its product lines support these needs, carrying common sizes and parts such as ferrules and compression nuts.
Important Highlights
- A Female Compression Fitting uses a ferrule and compression nut to seal without soldering.
- Choosing the correct material—brass, copper, stainless, PVC, or PEX—prevents corrosion and failure.
- Proper fittings reduce energy loss and reduce refrigerant or water leaks in HVAC and plumbing systems.
- Compression fittings guide resources and suppliers like InstallationPartsSupply.com support part selection.
- Inspect ferrules and tighten per manufacturer torque to ensure a long-lasting seal.
Understanding HVAC And Plumbing Uses For Compression Fittings
Compression fittings fasten pipes and tubing without solder or welding. They work well with copper, PEX, PVC, and stainless lines where heat or flame is best avoided. Many tradespeople buy parts from Installation Parts Supply to help maintain consistent quality and fit.
How A Compression Fitting Works
A compression fitting uses a nut and a ferrule olive pressed against the pipe by the fitting body. When the nut is tightened, it compresses the brass ferrule or sleeve, which grips the outer pipe and forms a seal. This setup explains the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
Main Differences Between HVAC And Plumbing Fittings
HVAC fittings need to manage refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings usually handle potable water, wastewater, and pressure from building systems. When comparing HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
HVAC equipment such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing applications often favor PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Compression Fitting Materials: Brass, Copper, Stainless Steel, PVC, And PEX
Copper fittings are valued for excellent thermal conductivity and corrosion resistance. Brass parts, including the brass ferrule, resist wear and are common in many compression fittings. Stainless steel is often chosen for corrosive or high-pressure environments.
PEX compression is popular for domestic water lines because it handles freeze-thaw cycles and is flexible. PVC remains a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material | Usual Application | Strengths | Possible Limits |
|---|---|---|---|
| Copper | Refrigerant lines, potable water | Durable, conductive, and easy to solder | Costlier with some risk of physical damage |
| Brass Components | Ferrules, nuts, and compression fittings | Good machinability, corrosion resistance | Galvanic risk with dissimilar metals |
| Stainless fittings | Demanding corrosive applications | Excellent durability with corrosion resistance | Higher cost and more difficult machining |
| PEX Pipe | Home hot-water and cold-water lines | Flexible and resistant to freeze-thaw cycles | Needs compatible PEX compression hardware |
| PVC Pipe | Drainage and low-pressure cooling circuits | Economical with straightforward installation | Limited in hot or pressurized applications |
Fitting Selection, Energy Efficiency, And Leak Prevention
Choosing the right fitting reduces leak risk and maintains system pressure. Across cooling circuits, a poor joint can release refrigerant and lower efficiency. Correctly matched fittings and seals cut maintenance and lower energy waste.
Choosing the proper ferrule olive and matching copper fittings or PEX compression hardware reduces the chance of galvanic corrosion and thermal fatigue. This method extends service life and keeps HVAC and plumbing systems running efficiently.

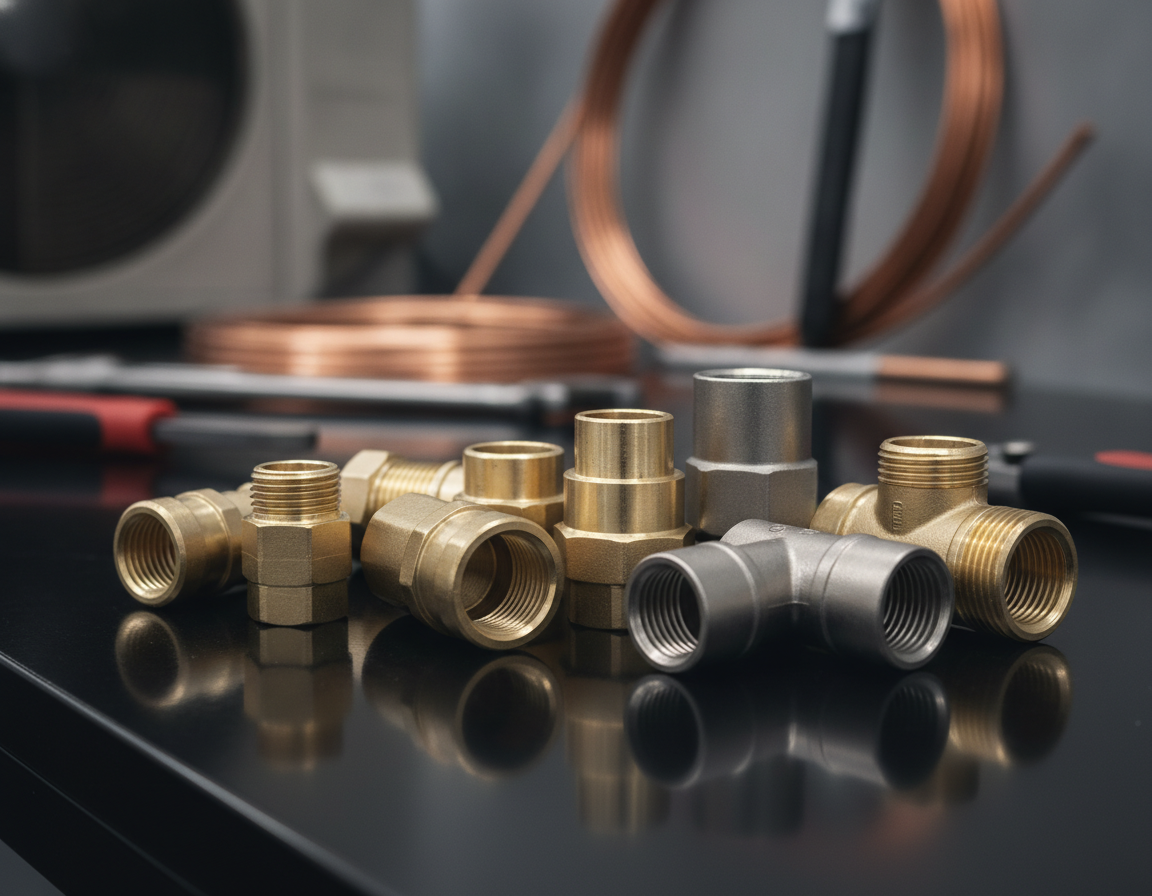

Female Compression Fitting
A female compression fitting connects and seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This connection provides tight connections without soldering, making it common in plumbing and HVAC. Adapters and unions support quick disassembly for service or instrument changes.
Basic Definition And Common Fitting Styles
A common setup uses a female compression nut, a ferrule olive, and the fitting body. The compression nut fastens to the fitting body and compresses the ferrule to grip the tube. Many installations rely on unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Compatible Materials And Uses
Copper and brass are often selected for refrigerant fittings and hot-water lines due to their ability to manage thermal cycles and resist deformation. Stainless steel is used in high-pressure or corrosive environments. PVC and PEX are used for condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Plumbing, HVAC, And Instrumentation Uses
For plumbing systems, female compression fittings link stops, valves, and supply lines without solder. In HVAC, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Instrumentation systems and gas lines commonly need compression parts for leak-tight, serviceable connections.
Comparison With Male Compression Fittings And Adapters
Female compression fittings receive a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter helps technicians interface service valves and gauges to the system. Matching materials helps prevent galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Assembly Part | Common Material | Usual Application | Practical Note |
|---|---|---|---|
| Female compression nut | Brass alloy | Plumbing feeds and shutoff connections | Replace if rounded or cracked |
| Ferrule olive | Brass and stainless options | Creates compression seal on compatible tubing | Often should be replaced during service |
| Main fitting body | Brass, stainless steel | Instrumentation and HVAC refrigerant fittings | Match to refrigerant type and pressure rating |
| Small male compression fitting | Brass or copper | Small-diameter line connection to female ports | Confirm thread and seat match |
| 3/8 service valve adapter | Brass construction | Gauge and manifold connections | Match seals to refrigerant fittings |
| Installation Parts Supply product line | Multiple materials | Supplier for compatible kits and replacement parts | Buy compatible ferrules and nuts for system longevity |
Plumbing And HVAC Fitting Types, Sizes, And Related Adapters
This section explores the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Professionals work with couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Choosing these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and unions allow the creation of removable joints for maintenance and testing. Straight couplings are useful for straight connections, while compression unions are helpful for components that need to be disconnected without disrupting the line. For short runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters help with tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting may connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs list a wide range of these components, ensuring quick access on job sites.
Selecting the correct size is essential, depending on the tube’s outside diameter and the ferrule and nut set. Check that the female compression fitting size matches the tube OD to prevent leaks. When working with 3/8″ lines, verify ferrule compatibility and torque specifications. Before final selection, check the system’s maximum pressure and temperature ratings before making a final selection.
Specialized parts like the Max Adaptor and 3/8 Valve Adapter are designed for connecting gauges, service ports, and small refrigerant lines. These fittings streamline the process of charging and diagnostics in HVAC systems. In HVAC, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Selecting the material means balancing between durability and corrosion resistance. Stainless steel is tough and corrosion-resistant, making it suitable for harsh environments. Brass and copper are good for refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PEX and PVC suit low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental effect of fittings depends on leak prevention and recyclability. Proper metal compression fittings help limit refrigerant emissions and can be recycled at the end of their life. Buying quality parts from reputable suppliers reduces failures and minimizes long-term environmental risk.
The comparison below helps buyers choose between common options by application, pressure, temperature, and reusability.
| Fitting Type | Usual Application | Max Pressure Typical | Typical Temperature Range | Reuse Potential |
|---|---|---|---|---|
| Compression coupling in brass | Instrument lines, small water lines, and refrigeration uses | Up to 3,000 psi depending on specification | Approximately -65°F to 250°F | Limited, because ferrules are often replaced |
| Compression union in brass or stainless | Disconnect points for maintenance | Up to about 2,500 psi | Typical range from -65°F to 300°F | Good reuse potential for service access |
| 3/8 compression connection | Small plumbing, refrigeration, and instrumentation use | Pressure rating must be verified | Verify material specification for HVAC use | Moderate reuse depending on ferrule condition |
| Small male compression fitting | Adapter for gauges and service valves | Refrigerant-rated when made and specified correctly | Designed for normal HVAC cycling when rated | Reusable if inspected and intact |
| Max Adaptor in brass or stainless | Specialized coupling for gauge and valve interfaces | High rating for suitable service tools | Suitable for HVAC temperature cycles | Built for repeated connection and removal |
| PVC/PEX fittings | Low-pressure water and condensate lines | Low rating and unsuitable for refrigerant | 32°F to 140°F typical | Reusable in some systems; limited life under UV |
Before buying, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Confirm that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Best Practices For Installation And Maintenance
Correct compression fitting installation begins with clean, square pipe ends and the right parts. On HVAC refrigerant circuits, use copper and brass. For low-pressure condensate or chilled water, PVC or PEX is best. Review manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
Basic compression fitting installation steps
1. First, cut and deburr the tube to a square face. 2. Slide the nut and ferrule onto the pipe in that order. 3. With softer plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Hand-tighten the nut, then use the two-wrench technique to finish the joint.
Useful installation tools and methods
Use a two-wrench method to hold the fitting body and turn the nut to prevent tube twist. Follow torque guidance from the fitting maker or Installation Parts Supply when available. Typical practice is to snug by hand, then add a limited number of wrench turns.
Using pipe inserts correctly
Pipe inserts should be used with soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not install inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Mistakes to avoid and ferrule removal tips
Prevent both loose and overly tight joints. Under-tightening may allow leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Most ferrules should be treated as single-use parts; plan to replace them when disassembling a joint.
How to remove a ferrule
Start by isolating the supply and releasing pressure. Secure the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. If the ferrule will not move, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
3/8 Valve Adapter installation guidance
For small lines like a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. The 3/8 Valve Adapter process mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Inspection and maintenance
Once the system is pressurized, inspect joints for weeps and tighten slightly if needed. Make regular checks for corrosion and thermal fatigue, especially on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Process Step | Required Action | Tip |
|---|---|---|
| Preparation | Cut square, deburr, clean pipe | Use a good tubing cutter and deburring tool |
| Assembly | Install the nut and ferrule before inserting the tube | Use inserts on PEX or PVC to hold tube shape |
| Final Tightening | Hand-tighten, then use two wrenches | Follow torque guidance from manufacturer |
| Pressure Test | Pressurize and check for leaks | Watch for slow weeps; re-torque slightly if safe |
| Routine Service | Inspect regularly, replace ferrules when disassembled | Stock spares from Installation Parts Supply for fast repairs |
Closing Notes
Using the correct compression fitting matters for plumbing and HVAC work. The fitting material, whether brass, copper, stainless steel, PVC, or PEX, must fit the service type. This ensures reliability and extends system life. Correct parts and proper installation can greatly reduce energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings deliver a leak-free, solder-free solution. They are made up of a nut, ferrule, and body. To create a reliable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These methods guarantee long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For job-specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, it is important to match size and pressure ratings to the task. High-quality components from reputable suppliers matter. An Installation Parts Supply guide can assist in finding compatible fittings and adapters. Regular maintenance and proper selection preserve system efficiency and compliance.
In summary, dedicating time to material selection and correct assembly is worthwhile. That helps ensure durable, leak-free connections. It contributes to optimal performance, fewer repairs, and less environmental harm.
